Description
DIMENSIONS OF SURROUND (Milimetres)
- A: 370 mm, OUTER DIAMETER OF SURROUND
- B: 347 mm, WHERE THE ROLL STARTS
- C: 303 mm, WHERE THE ROLL ENDS

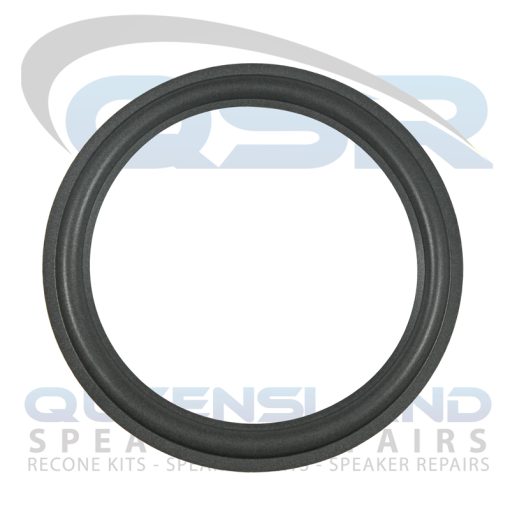

15″ Realistic, Optimus & Radio Shack Foam Surround Kit – (FS 347-303)
From: $16.50 AUD Inc GST
Create a DIY Surround Kit
- Step 1: Choose Surround Qty.
- Step 2: Choose Glue Kit Qty (Optional)
- Step 3: Choose Dust Cap/ Domes Qty (Optional)
- Step 4: Choose Gaskets Qty (Optional)
- Step 5: Add Custom Kit Qty to Cart

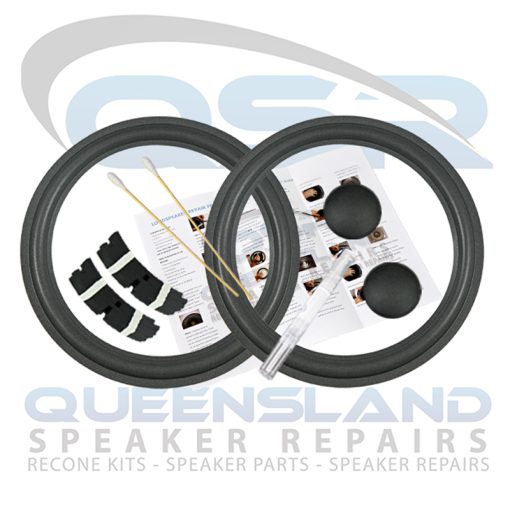

Please note: Picture is of a sample DIY kit. All Parts sold individually.
How to Measure a Replacement Surround
To help select a replacement Surround: It is important to measure your speaker accurately to ensure you order the most suitable surround. Use a good ruler or tape. Double check each measurement. The (B) and (C) dimensions are the most important. You must be within 5mm from your required dimension so it does not affect the performance of the speaker. If the (A) Dimension is bigger than you require, it can easily be trimmed to suit your dimensions (This is very common for Speaker Repairers to do. If you cut the surround unevenly it can be easily covered by a gasket for a neat finish. This is shown in the instructions). The (D) dimension is the lip surface that is glued onto the cone, as long as there is more than 3mm of gluing surface if will be perfect.
If you are still uncertain of which surround to choose, please contact us with the (ABCD) Dimensions and we will help choose the correct surrounds for you.
Fits Models
This part will suit the following models & many others: Realistic, Optimus & Radio Shack: 3807, 3808, 3809, 3811, 40-1008 40-1125, 40-1131, 40-1301, Mach3, Mach-3, Mach Three, Optimus 3, Optimus 15, Optimus 1000, Optimus 1050, Optimus 990, SP5198, Mach-2, Mach2, Mach 2, Mach Two, Mach II, Mach 3, Mach III, Mach 3, Optimus Pro 4000, 40-3032, 403032, 40 3032, AWF-00-004 (Please Note: Check Cone “C” For Mach Series).
